Description

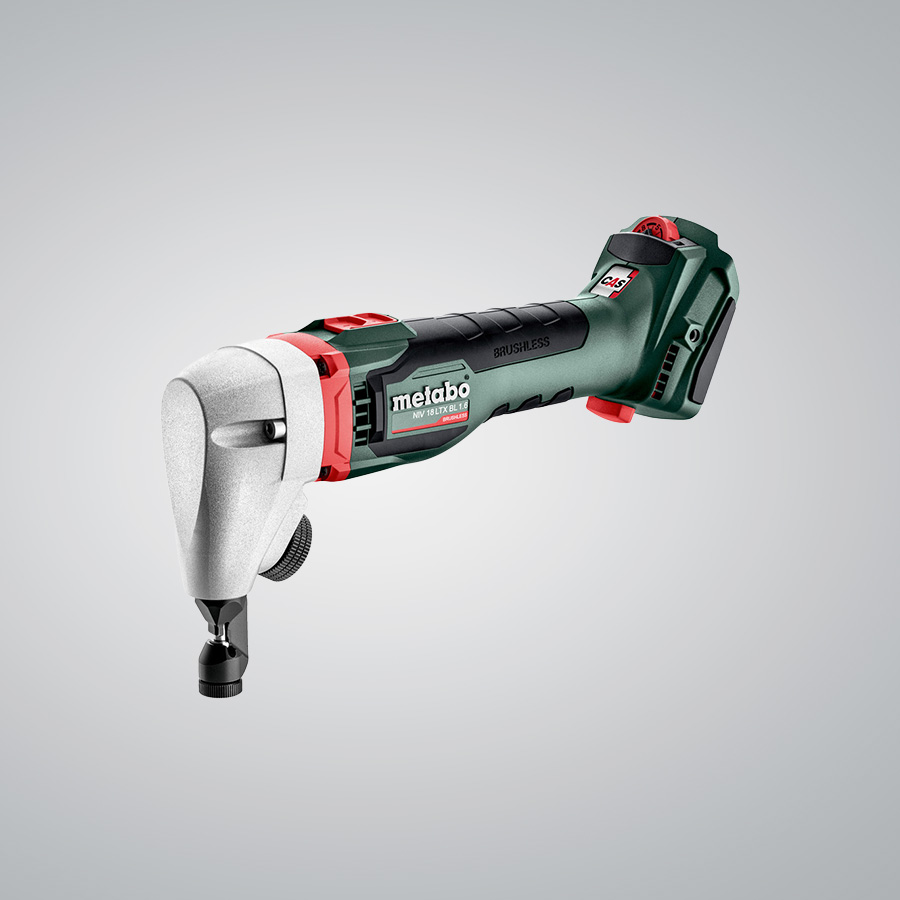

- Handy, powerful cordless nibblers for effortless cutting of flat and shaped sheets
- Good cornering ability for notches and interior cut-outs of a radius of 40 mm or more
- Fast, tool-free adjustment of cutting direction by up to 360°, in 45° steps
- High feed rate for faster working, thanks to an efficient brushless motor
- Infinitely adjustable cutting speed for individual customisation to the given material and task at hand
- Distortion- and spark-free cutting, without the annoyance of metal dust
- Comfortable handling thanks to low weight, slim grip area and switch located on the top
- Metabo Quick: tool-free quick changing of dies and punches
- Electronic overload protection for long service life
- With chip collection bag to protect against contact corrosion from ejected chips
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Battery voltage: 18 V
Max. sheet thickness for steel: 400 N/mm²: 1.6 mm
Strokes in idle: 660 – 2360 rpm
Smallest curve radius: 40 mm
Technical Data:
Characteristics
Battery voltage 18 V
Max. sheet thickness for steel: 400 N/mm² 1.6 mm
Max. sheet thickness for steel: 600 N/mm2 1.2 mm
Max. sheet thickness for steel: 800 N/mm2 0.7 mm
Max. sheet thickness for aluminium: 250 N/mm2 2 mm
Strokes in idle 660 – 2360 rpm
Cutting speed 1.2 – 2.6 m/min
Cutting width 5 mm
Starting hole diameter 21 mm
Smallest curve radius 40 mm
Weight without battery pack 1.3 kg
Weight with battery pack 1.7 kg
Vibration
Cutting of sheets 8 m/s²
Uncertainty of measurement K 1.6 m/s²
Noise emission
Sound pressure level 96 dB(A)
Sound power level (LwA) 107 dB(A)
Uncertainty of measurement K 3 dB(A)
