Description

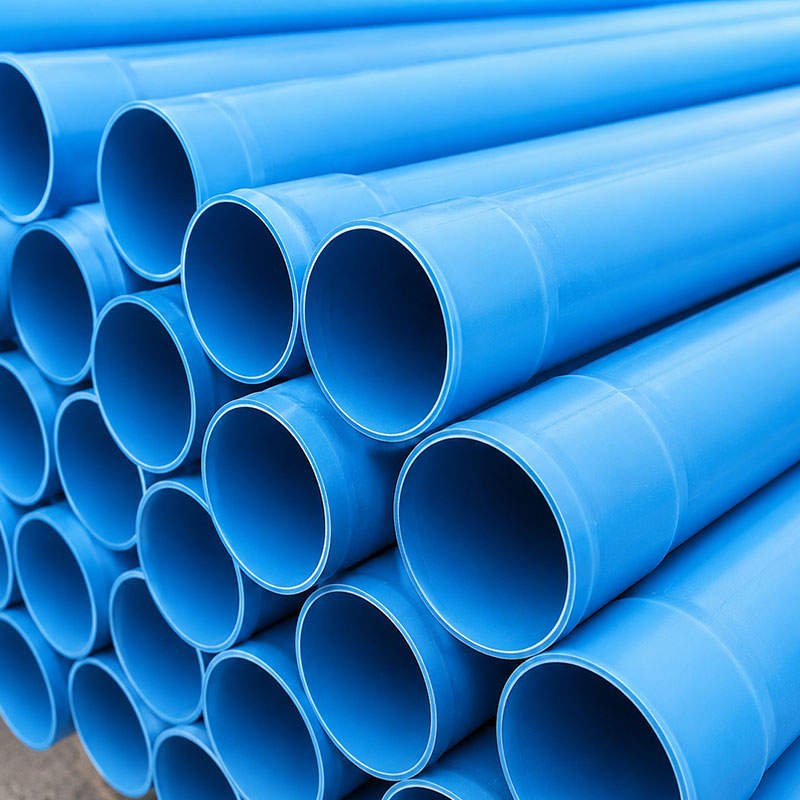

RockForce PVC Borehole Casings and Screens are engineered specifically for borehole construction, groundwater extraction and water-management applications. Unlike conventional PVC water pipes, which are primarily designed to withstand internal pressure, RockForce borehole casings are designed to provide enhanced resistance to external ground pressure, helping to support and stabilise drilled holes.
Manufactured from selected PVC compounds, the range offers excellent mechanical strength while remaining completely non-corrosive. This makes RockForce PVC casings and screens a durable, cost-effective solution for demanding borehole environments.
RockForce works with drilling contractors, consulting engineers, mines, municipalities and other industry professionals to provide casing solutions suited to specific project requirements.
Applications
Suitable for water wells, mine dewatering, seawater abstraction, geotechnical drilling and groundwater monitoring.
Key Advantages
- Excellent resistance to external collapse pressure and tensile loads
- Resistant to corrosion, acids and alkalis
- Designed specifically for borehole applications
- Accurate slot sizes on perforated screen pipes
- Lightweight for easier handling and installation
- Cost-effective and reliable
- Flush-jointed options assist with improved water flow
- Multiple diameters, wall thicknesses and pressure classes available
- Solid and perforated configurations available
| Diameter | Wall Thickness | Class | Available Types |
|---|---|---|---|
| 110 mm | 2.2 mm | Class 6 | Solid / Perforated |
| 110 mm | 2.7 mm | Class 9 | Solid / Perforated |
| 110 mm | 3.6 mm | Class 12 | Solid / Perforated |
| 125 mm | 2.4 mm | Class 6 | Solid / Perforated |
| 125 mm | 3.1 mm | Class 9 | Solid / Perforated |
| 125 mm | 5.2 mm | Class 12 | Solid / Perforated |
| 140 mm | 2.8 mm | Class 6 | Solid / Perforated |
| 140 mm | 3.5 mm | Class 9 | Solid / Perforated |
| 140 mm | 4.6 mm | Class 12 | Solid / Perforated |
| 165 mm | 3.2 mm | Class 6 | Solid / Perforated |
| 165 mm | 4.0 mm | Class 9 | Solid / Perforated |
| 165 mm | 5.7 mm | Class 12 | Solid / Perforated |
| 185 mm | 3.7 mm | Class 6 | Solid / Perforated |
| 185 mm | 5.5 mm | Class 9 | Solid / Perforated |
| 185 mm | 7.5 mm | Class 12 | Solid / Perforated |
| 200 mm | 3.7 mm | Class 6 | Solid / Perforated |
| 200 mm | 4.6 mm | Class 9 | Solid / Perforated |
| 200 mm | 6.5 mm | Class 12 | Solid / Perforated |
Standard Length: 6 m
Joint: Belled
Perforation: 3 sides – 12 blocks per pipe
