Description

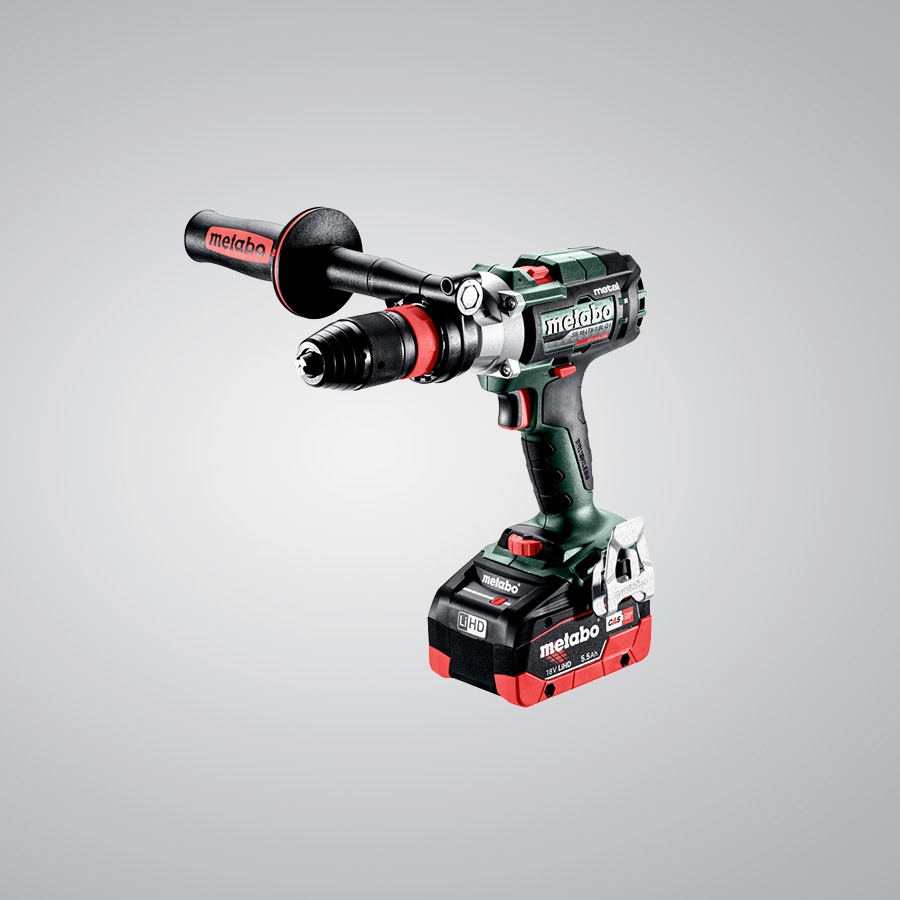

- The metal expert: brushless 3-speed cordless hammer drill with maximum power and automatically re-tightening chuck
- Extremely powerful chuck with re-tensioning function against slipping of the bit and high degree of concentricity
- Third speed setting with high torque (max. 4,000/min) for extended range of application and even faster drilling progress, especially in metal
- Hammer drill function for drilling in masonry
- Metabo QuickPlus System: quick change of chucks, bit holders, angle adapters and more for flexible working with maximum load
- Selectable “impuls” mode for removal of stubborn screws and for spot-drilling on smooth surfaces
- Robust, durable gear housing made from aluminium die-cast
- Spindle with magnetic hexagon recess for screwdriver bits for working without chuck
- Powerful Brushless motor for greatest efficiency and long battery pack runtime
- Precision Stop: electronic torque control with increased precision for precise, delicate working
- Overload protection: protects the motor from overheating
- Euro collar (Ø 43 mm) for versatile use
- Electronic safety shutdown: no kickback if the drill bit stops unexpectedly – for high user safety
- Integrated LED work light with afterglow function for optimal brightness in the work area
- With handy belt hook and bit case which can be fixed either on the right or left side
- With metaBOX, the intelligent solution for transport and storage
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Battery voltage:18 V
Maximum torque, soft: 65 Nm
Maximum torque, hard: 130 Nm
Drill-Ø masonry: 16 mm
Drill Ø steel: 16 mm
Drill-Ø soft wood: 68 mm
No-load speed: 0 – 450 / 0 – 2000 / 0 – 4000 rpm
Maximum torque, soft: 65 Nm
Maximum torque, hard: 130 Nm
Drill-Ø masonry: 16 mm
Drill Ø steel: 16 mm
Drill-Ø soft wood: 68 mm
No-load speed: 0 – 450 / 0 – 2000 / 0 – 4000 rpm
Technical Data:
Characteristics
Type of battery pack: LiHD
Battery voltage: 18 V
Battery pack capacity: 2 x 5.5 Ah
Maximum torque, soft: 65 Nm
Maximum torque, hard: 130 Nm
Adjustable torque: 1 – 18 Nm
Drill-Ø masonry: 16 mm
Drill Ø steel: 16 mm
Drill-Ø soft wood: 68 mm
No-load speed: 0 – 450 / 0 – 2000 / 0 – 4000 rpm
Maximum impact rate: 38000 bpm
Chuck capacity: 1.5 – 13 mm
Collar diameter: 43 mm
Weight without battery pack: 2.1 kg
Weight with battery pack: 3.1 kg
Vibration
Drilling in metal: 3 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 25 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 98 dB(A)
Sound power level (LwA): 109 dB(A)
Uncertainty of measurement K: 3 dB(A)
