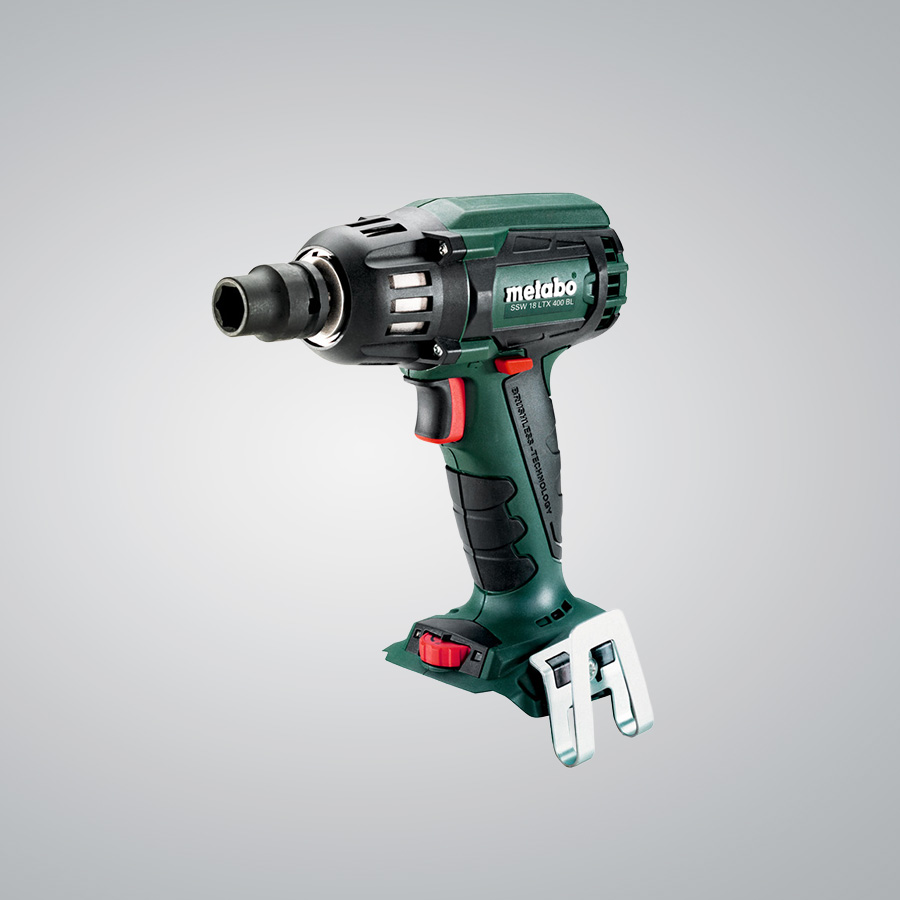

Description
- Powerful Brushless motor for greatest efficiency and long battery pack runtime
- Overload protection: protects the motor from overheating
- High torque accompanied by an exceptionally compact design
- Low kick-back operation with extremely high torque
- Twelve speed/torque levels for a wide range of applications
- Integrated LED work light for optimal brightness in the work area
- Robust die cast aluminium gear housing for optimum heat dissipation and durability
- Handy belt hook, can be fixed either on the right or left side
- With metaBOX, the intelligent solution for transport and storage
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Battery voltage: 18 V
Maximum torque: 400 Nm
Tool holder: Male square 1/2″ (12.70 mm)
Technical Data:
Characteristics
Battery voltage 18 V
Max. screw size M20
Max. no-load speed 0 – 2150 rpm
Maximum impact rate 4250 bpm
Maximum torque 400 Nm
Max. loosening torque 620 Nm
Speed/torque levels 12
Tool holder Male square 1/2″ (12.70 mm)
Weight without battery pack 1.3 kg
Weight with battery pack 1.9 kg
Vibration
Impact screwdriving 12 m/s²
Uncertainty of measurement K 1.5 m/s²
Noise emission
Sound pressure level 100 dB(A)
Sound power level (LwA) 111 dB(A)
Uncertainty of measurement K 3 dB(A)
