Description

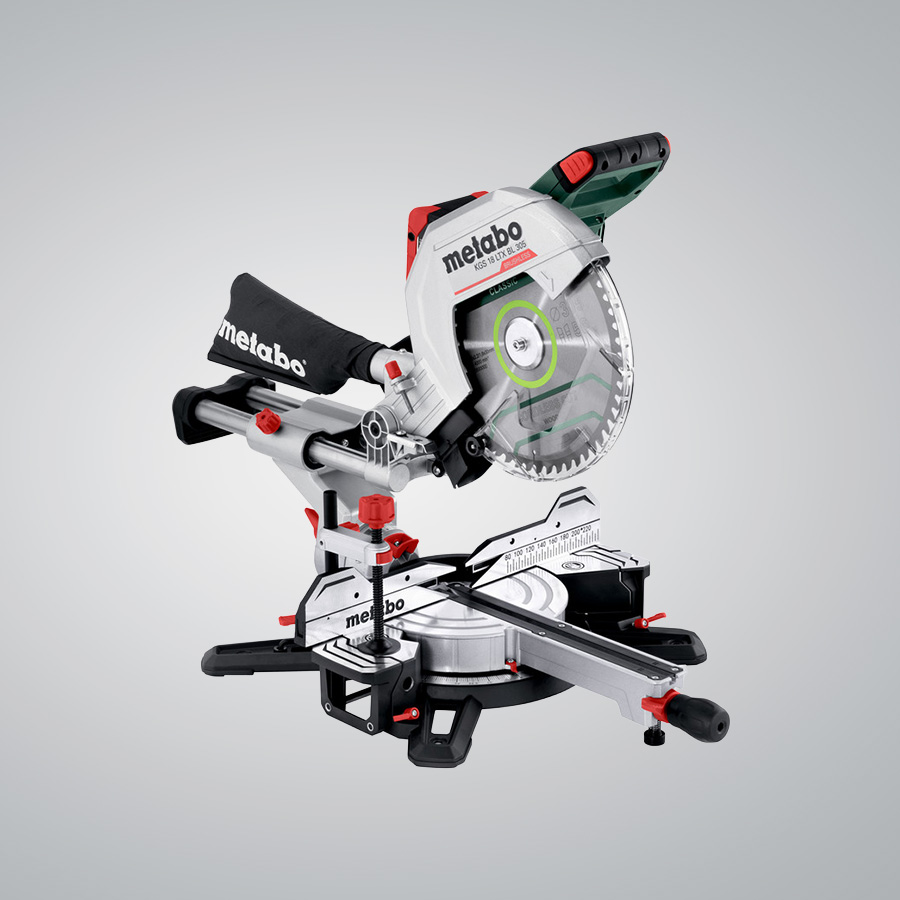

- Largest cordless crosscut and mitre saw of mobile M-class – light, precise, user-friendly
- Powerful Brushless motor for powerful sawing like with a mains-powered tool
- Up to 120 cuts in soft wood 100 x 100 mm per battery pack charge (LiHD 10 Ah)
- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination on both sides up to 47° for maximum flexibility
- Robust die-cast aluminium design for the highest demands
- Effective dust extraction via integrated dust scoop
- Soft start and overload protection for long service life of motor and drive
- Extendable table width extensions, also removable to put underneath extremely long work pieces
- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively
- Ergonomic handle areas for carrying with one or two hands
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Type of battery pack: LiHD
Battery voltage: 18 V
Saw blade: 305 x 30 mm
No-load speed: 3700 rpm
Technical Data:
Characteristics
Type of battery pack LiHD
Battery voltage 18 V
Battery pack capacity 2 x 8 Ah
Support surface 345 x 770 mm
Maximum cutting width 90°/45° 305 / 215 mm
Maximum cutting depth at 90°/45° 110 / 67 mm
Cutting capacity 90°/90° 305 x 110 mm
Cutting capacity 45°/45° 215 x 67 mm
Turntable setting left/right 50 / 60 °
Saw blade tilt left/right 47 / 47 °
Saw blade 305 x 30 mm
No-load speed 3700 rpm
Max. cutting speed 59 m/s
Weight without battery pack 17.4 kg
Weight with battery pack 18.4 kg
Noise emission
Sound pressure level 98 dB(A)
Sound power level (LwA) 107 dB(A)
Uncertainty of measurement K 3 dB(A)
