Description

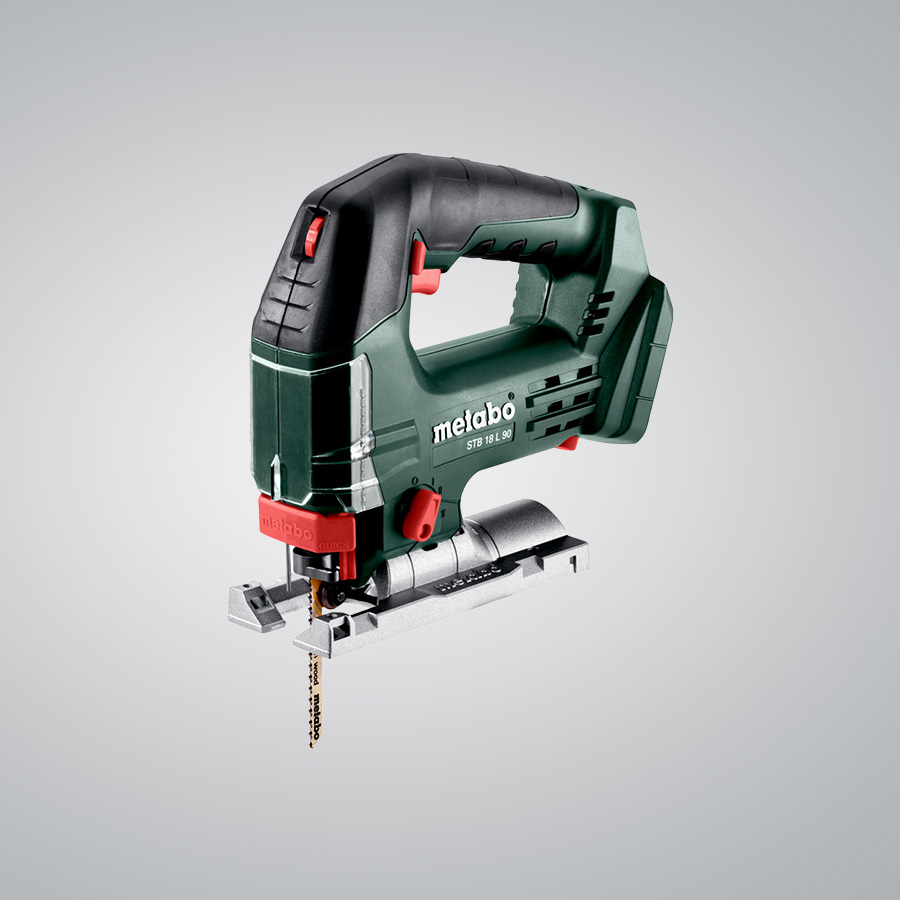

- The daily helper for universal sawing applications: compact cordless jigsaw for cuts in wood up to 90 mm
- Metabo “Quick” for changing saw blades without tools and with automatic ejection
- Top handle with non-slip soft-grip surface
- Efficient chip blowing function for clear view of the cutting line
- Integrated LED work light for illumination of the cutting line
- Restart protection: prevents unintentional start-up after battery pack change
- Extraction possibility by means of connecting an all-purpose vacuum cleaner
- With metaBOX, the intelligent solution for transport and storage
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Battery voltage: 18 V
Cutting depth wood: 90 mm
Strokes in idle: 700 – 3000 rpm
Technical Data:
Characteristics
Battery voltage 18 V
Cutting depth wood 90 mm
Cutting depth NF metal 25 mm
Cutting depth sheet steel 10 mm
Swivel range from / to: – 45 / + 45 °
Pendulum stroke levels 4
Strokes in idle 700 – 3000 rpm
Saw blade stroke 22 mm
Weight without battery pack 1.6 kg
Weight with battery pack 2 kg
Vibration
Sawing wood 4 m/s²
Uncertainty of measurement K 1.5 m/s²
Sawing metal 6.3 m/s²
Uncertainty of measurement K 1.5 m/s²
Noise emission
Sound pressure level 96 dB(A)
Sound power level (LwA) 88 dB(A)
Uncertainty of measurement K 5 dB(A)
