Description

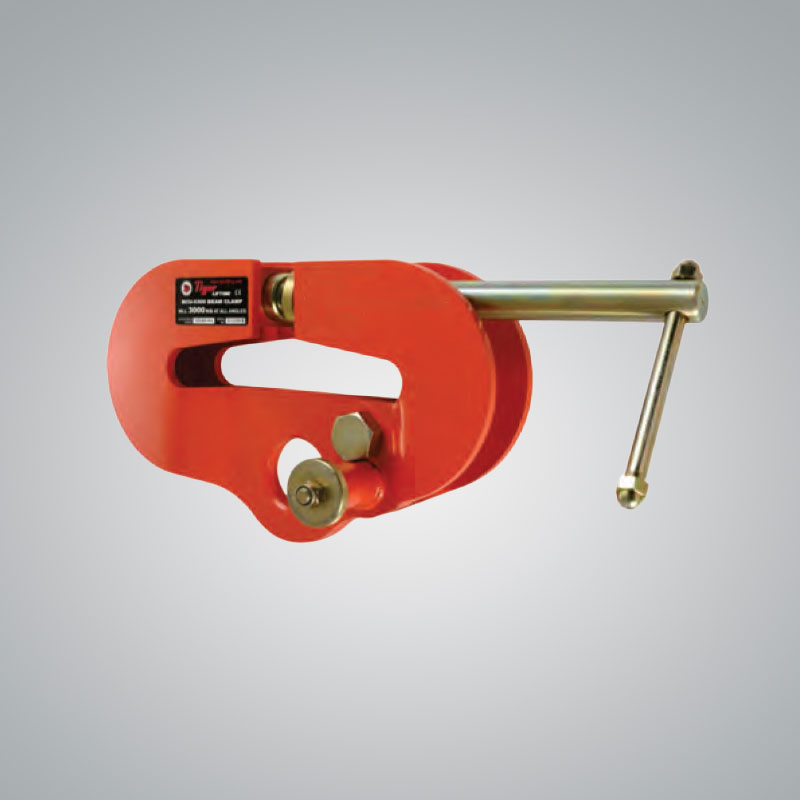

Tiger trolleys are designed to provide smooth and easy traversing, Tiger Universal Beam Clamp are suitable for lifting at any angle.
- Full rated capacity at any lifting angle 3t and 5t capacities available
- Quick and versatile rigging point for hoisting equipment
- Low headroom design Highly flexible- for lifting, pulling or as a semi-permanent anchor point
- Designed for both vertical and side loading applications -can be loaded at any angle
- Suitable for pulling and lifting at angles across the beam
- Designed to accommodate a wide range of beam widths
- Multidirectional adjusting screw spindle ensures a high clamping force to beam web
- Operating temperature of -50°C to +50°C 4:1 factor of safety
- Complies with ASME B30.20 and EN13155 :2003+A2 :2009
Technical Specifications

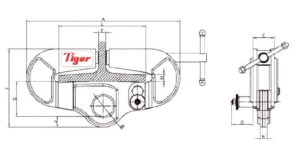

| Product Code | Capacity (ton) | Track Width Range (mm) | A | B | C | D | E | F | G | H | J | K | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BTBCU030 | 3.0 | 125–204 | 387 | 60 | 70 | 63 | 32 | 235 | 100 | 25 | 28 | 20 | 15.5 |
| BTBCU050 | 5.0 | 125–305 | 524 | 70 | 74 | 72 | 32 | 270 | 120 | 25 | 28 | 40 | 27.0 |
Warning: Do not exceed working load limits or use this equipment for lifting flat plate sections.
