Description

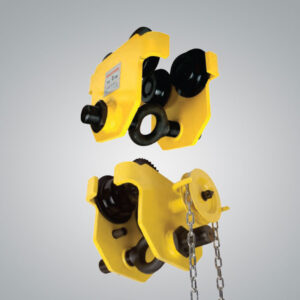

Tiger trolleys are designed to provide smooth and easy traversing.
Plain trolley range from 0.5t to 5t (single bar) and 10t (twin bar) The anti-drop plates design ensures extra safety, and also prevents damage to wheels when contacting end rail stoppers
Wheels run on sealed ball bearings for smoother rolling with less effort and maintenance Geared type trolleys from 1t to 10t available (with 3m hand chain length) Extended beam width available Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option 5:1 factor of safety allows for use with manual or powered hoists.
- Plain Trolley Range from 0.5t to 10.0t
- Geared Trolley Range from 0.5t to 35.0t
- The anti-drop plates design ensures extra safety, and prevents damage to the wheels when contacting end rail stoppers
- Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
- The wheels run on sealed bearings for smoother rolling with less effort and maintenance
- Twin bar or single bar trolleys available
- Geared type available (with hand chain length to suit your requirements)
- Extended beam width available
- Corrosion or Spark Resistant versions available
- Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
- Optional beam locking device
- Powder coated universal wheels suit both tapered and flat flange beams
- The 5:1 factor of safety allows for use with manual or powered hoists
Technical Specifications
| Product Code | Capacity (ton) | Track Width Range (mm) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | Min. Curve Radius (m) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BTPT005 | 0.5 | 62–203 | 195 | 106 | 106 | 98 | 20 | 64 | 0.8 | 5.0 |
| BTPT010 | 1.0 | 62–203 | 213 | 113 | 113 | 106 | 20 | 71 | 1.0 | 7.5 |
| BTPT020 | 2.0 | 88–230 | 236 | 136 | 136 | 132 | 25 | 80 | 1.3 | 12.0 |
| BTPT030 | 3.0 | 88–230 | 270 | 146 | 146 | 150 | 25 | 97 | 1.5 | 19.5 |
| BTPT050 | 5.0 | 106–305 | 323 | 169 | 169 | 174 | 30 | 117 | 1.5 | 30.5 |
| BTPT100 | 10.0 | N/A | 460 | 225 | 225 | 248 | 42 | 182 | 2.7 | 135.5 |
